• Wheels, 17" x 8" (43.2 cm x 20.3 cm) painted steel
• Tires, P255/70R17 all-season, blackwall
• Wheel, full-size spare, 17" (43.2 cm) steel
• Tire, spare P255/70R17 all-season, blackwall (Included and only available with (RBZ) P255/70R17 all-season, blackwall tires.)
• Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door
• Bumpers, front, Black
• Bumpers, rear, Black
• Lamps, cargo area, cab mounted with switch on center switch bank
• Tailgate and bed rail protection cap, top
• Tailgate, locking utilizes same key as ignition and door
• CornerStep, rear bumper
• Headlamps, halogen reflector
• Mirrors, outside manual, Black
• Glass, solar absorbing, tinted
• Door handles, Black

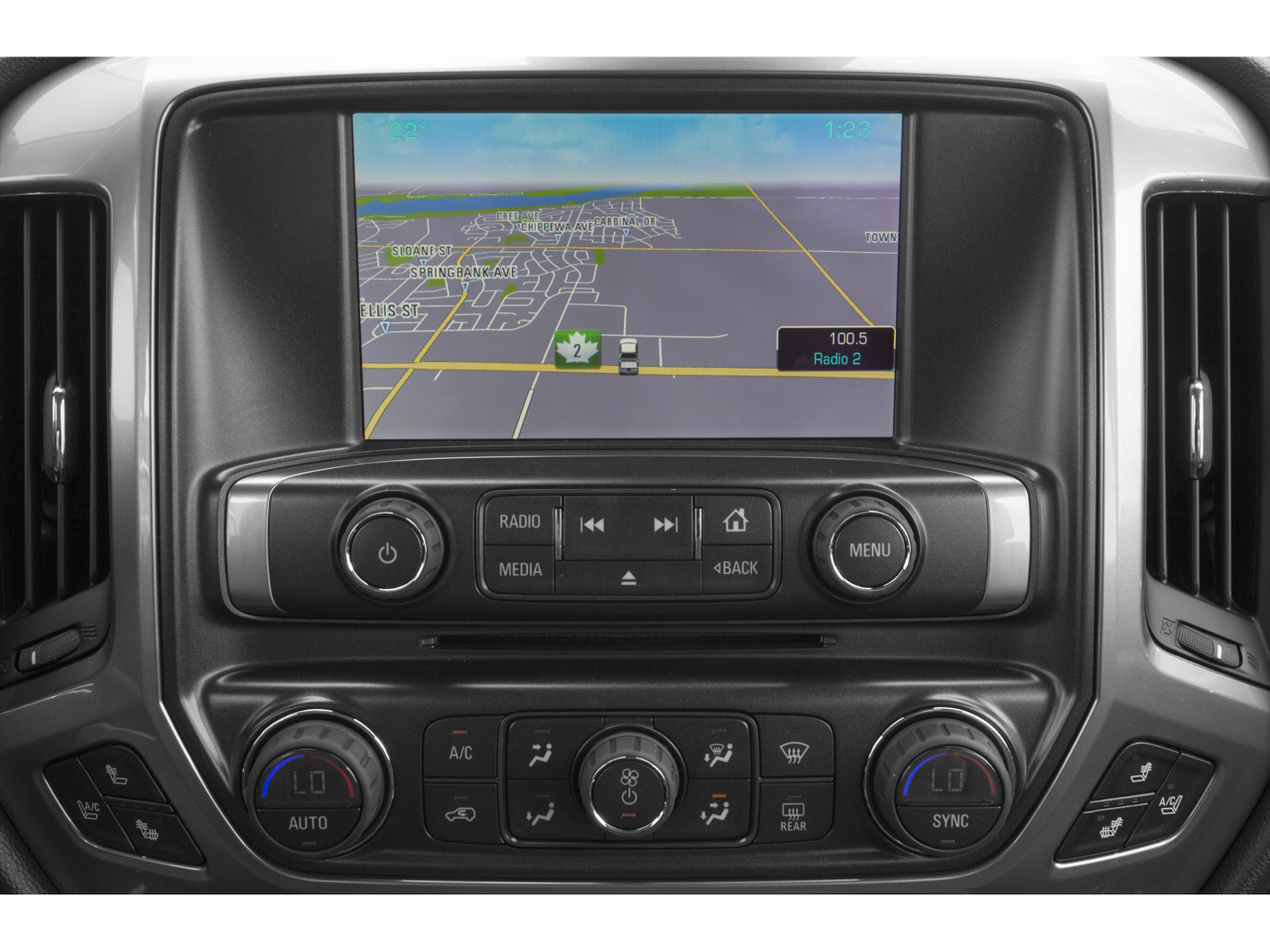

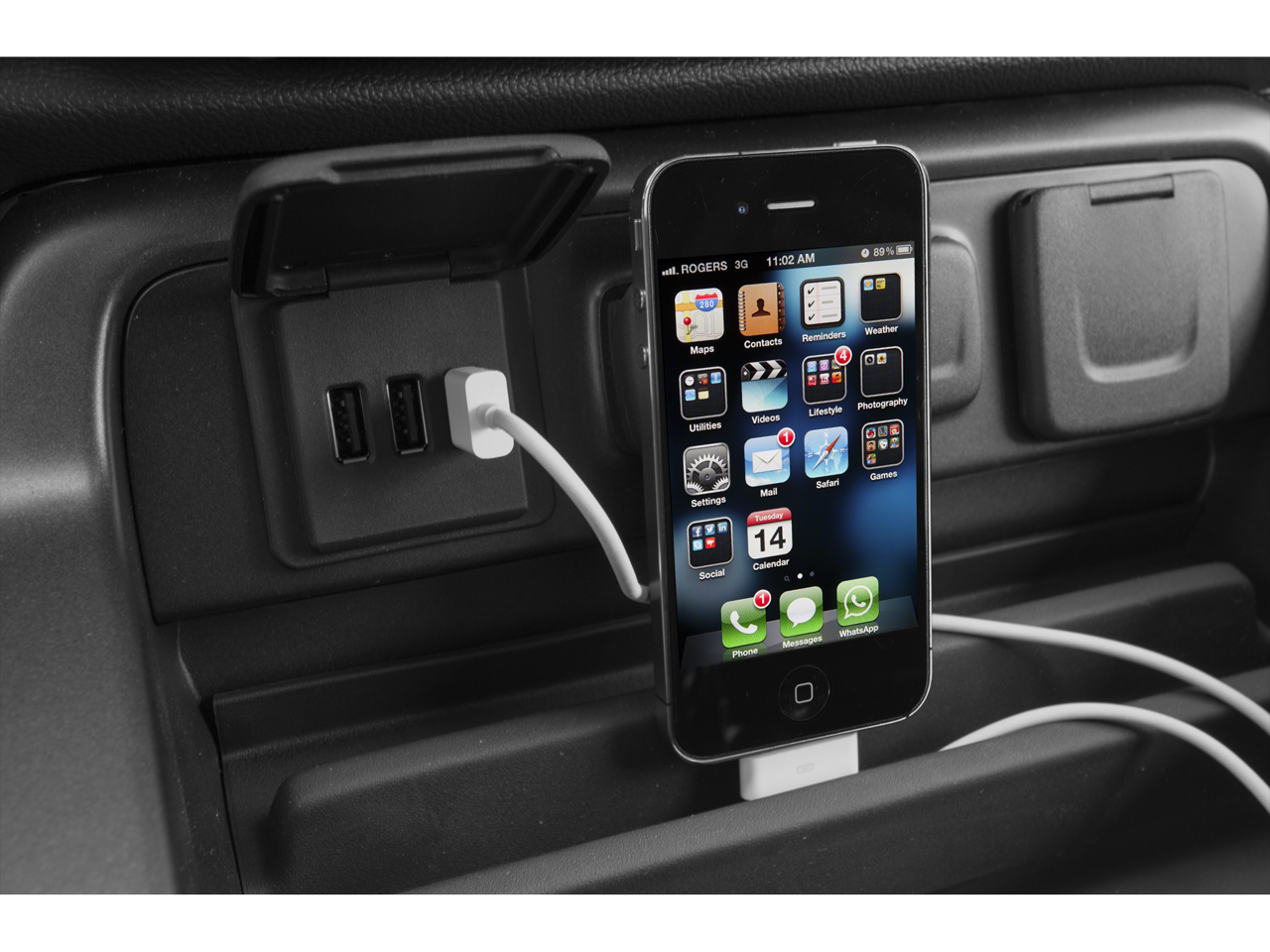

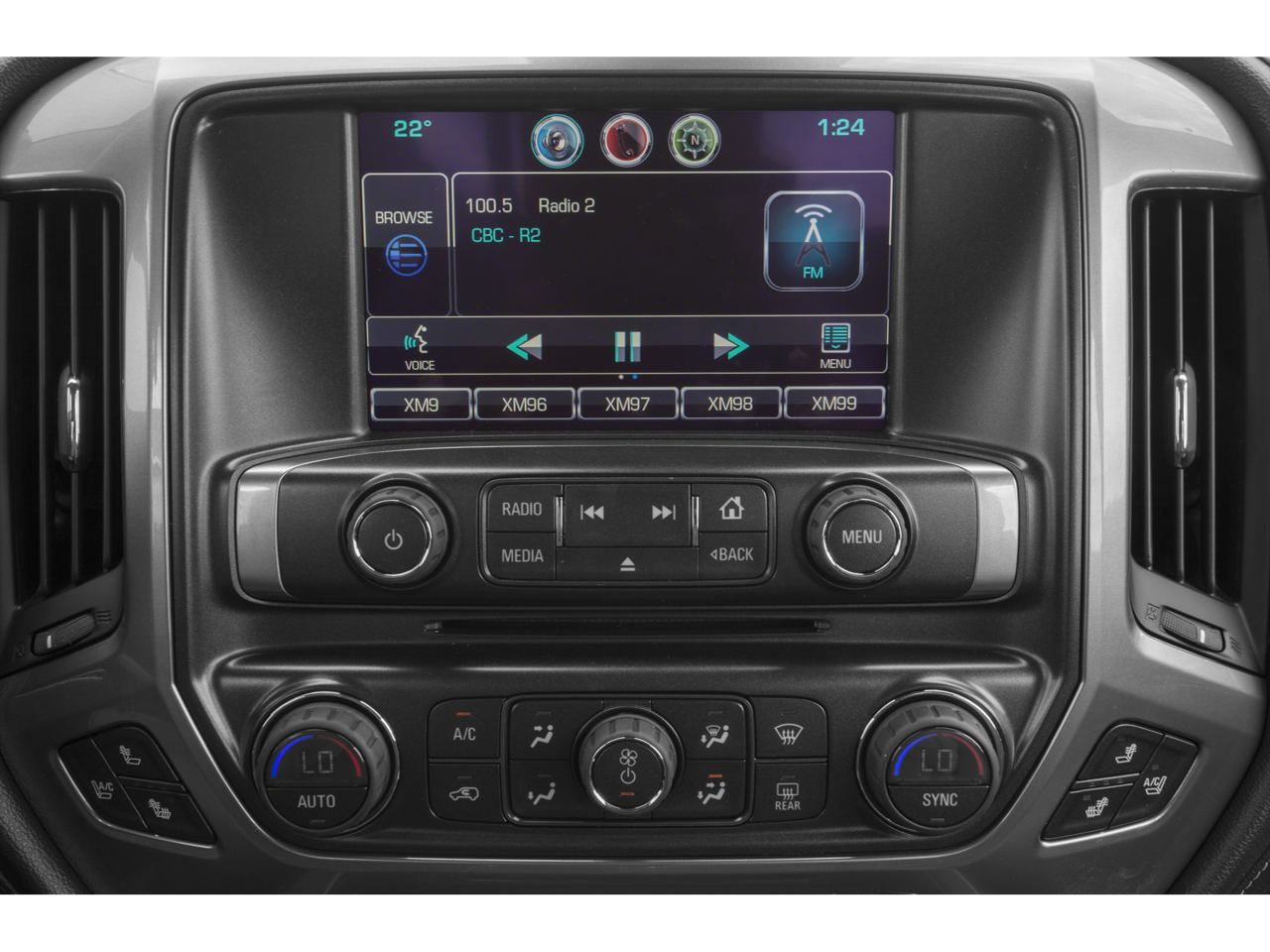

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB ports auxiliary jack and SD card slot
• SiriusXM Satellite Radio, delete
• 6-speaker audio system

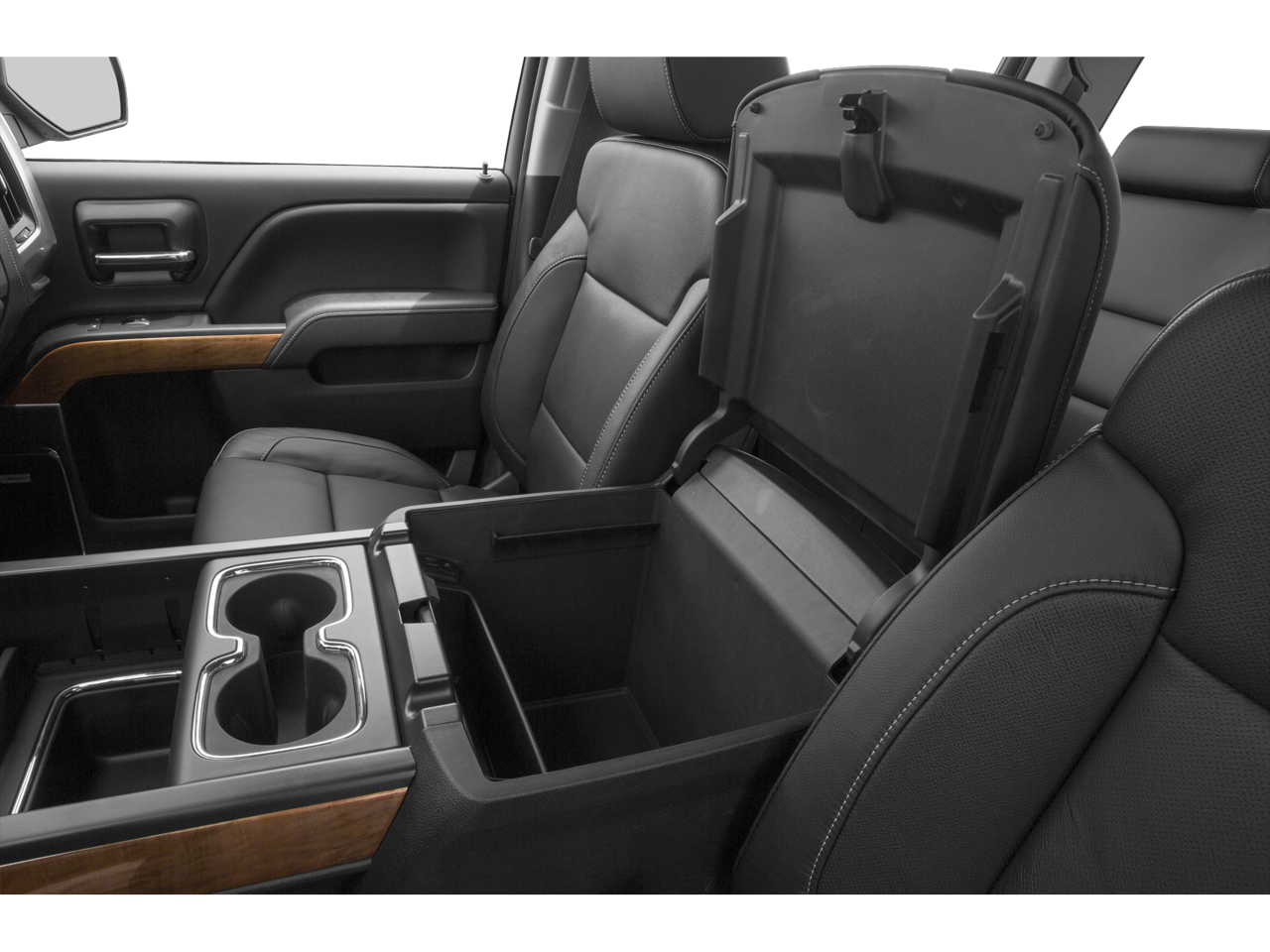

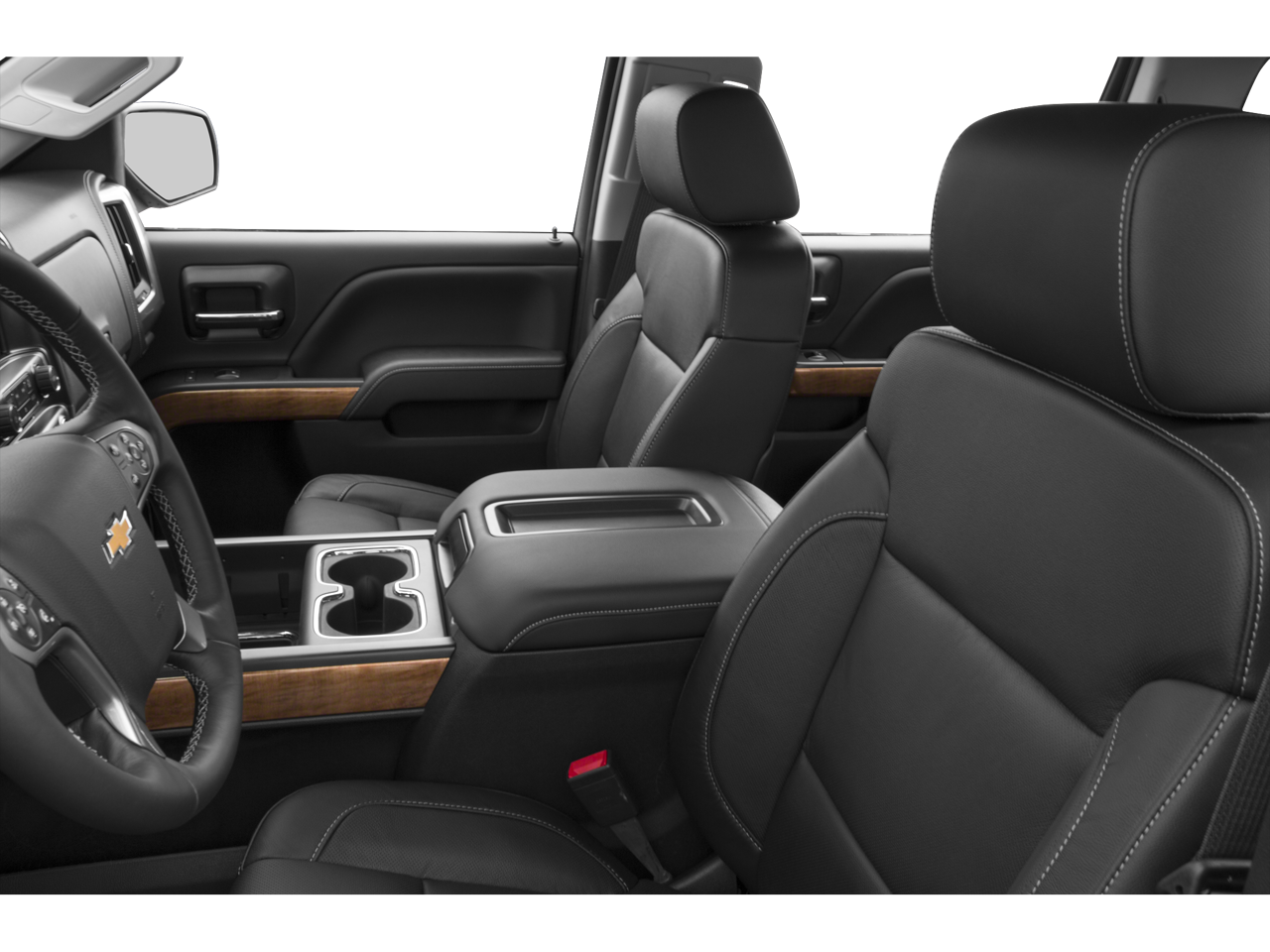

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manual adjustable driver lumbar.

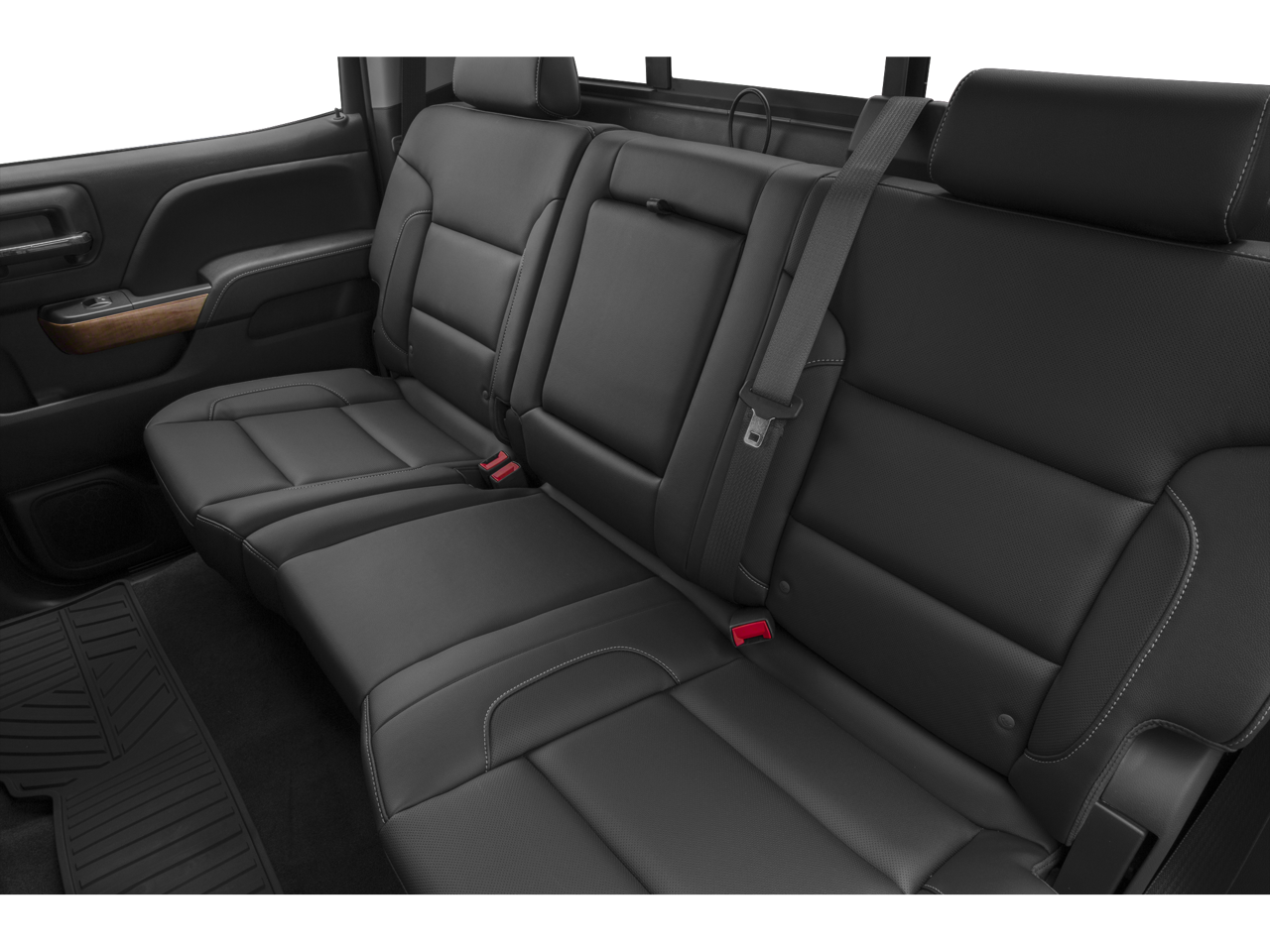

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, Graphite-colored rubberized-vinyl, no floor mats included

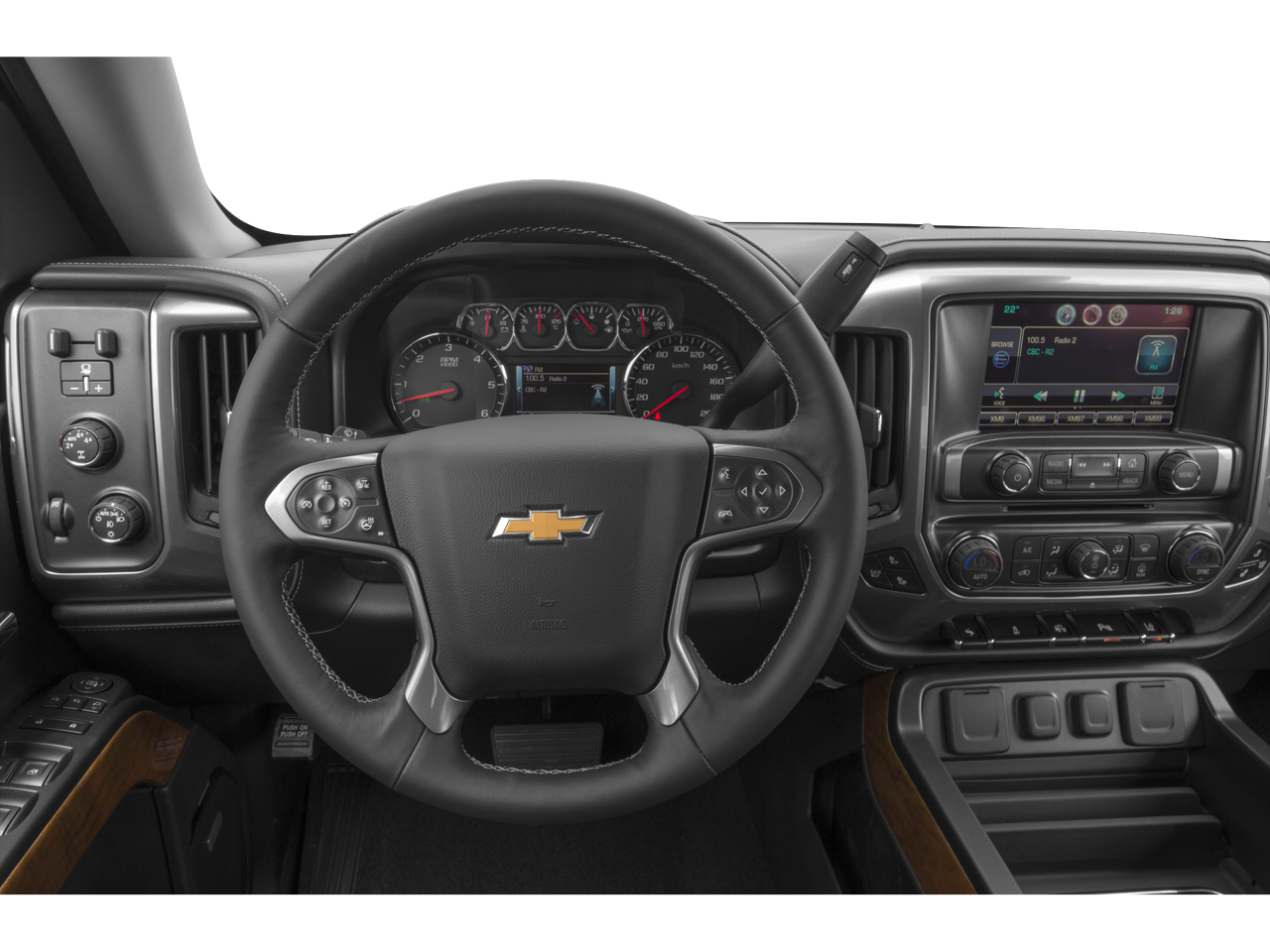

• Steering column, Tilt-Wheel, manual with theft-deterrent locking feature
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information

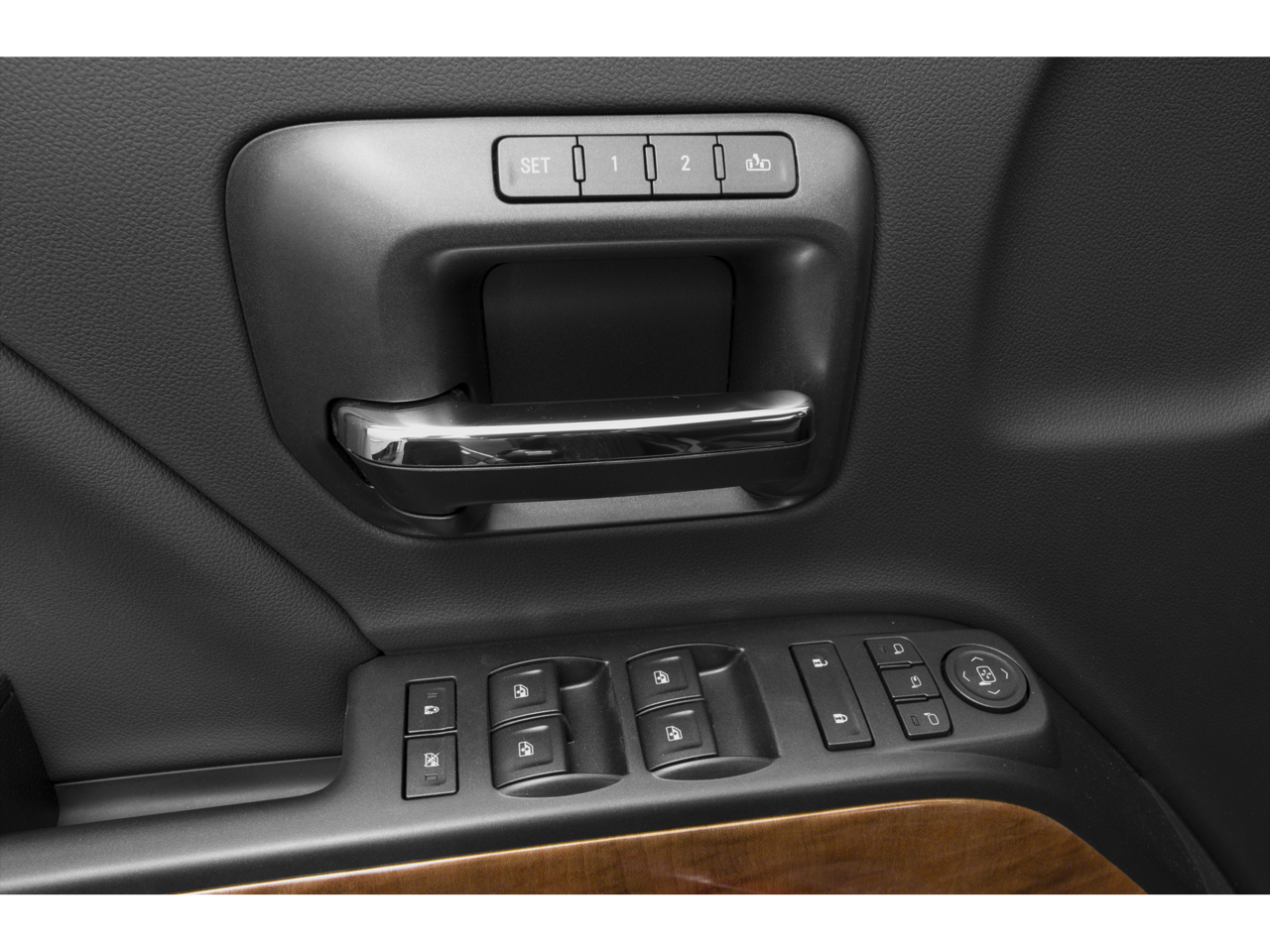

• Windows, power front and rear with driver express up and down and express down on all other windows
• Door locks, power
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Air conditioning, single-zone
• Assist handle, front passenger on A-pillar

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain side-impact airbags for front and rear outboard seating positions; includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, delete also deletes driver information center compass.
• Tire Pressure Monitoring System (does not apply to spare tire)

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE

(includes driver's side spotter mirror) (Black.

AUDIO SYSTEM, 4.2" DIAGONAL COLOR DISPLAY, AM/FM STEREO WITH USB PORTS

auxiliary jack and SD card slot (STD)

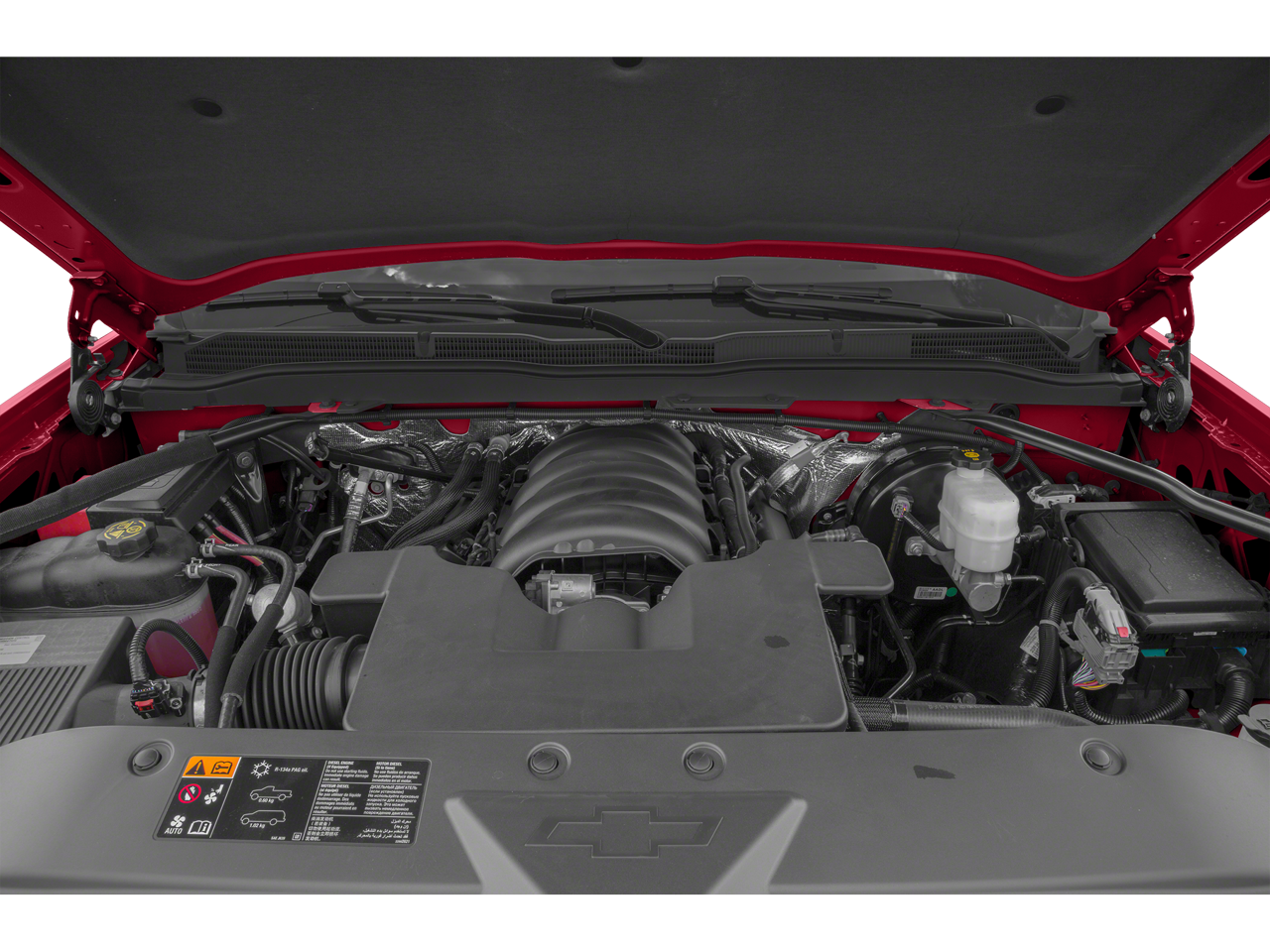

ENGINE, 4.3L FLEXFUEL ECOTEC3 V6 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

includes aluminum block construction with FlexFuel capability capable of running on unleaded or up to 85% ethanol (285 hp @ 5300 rpm 305 lb-ft of torque @ 3900 rpm) (STD)

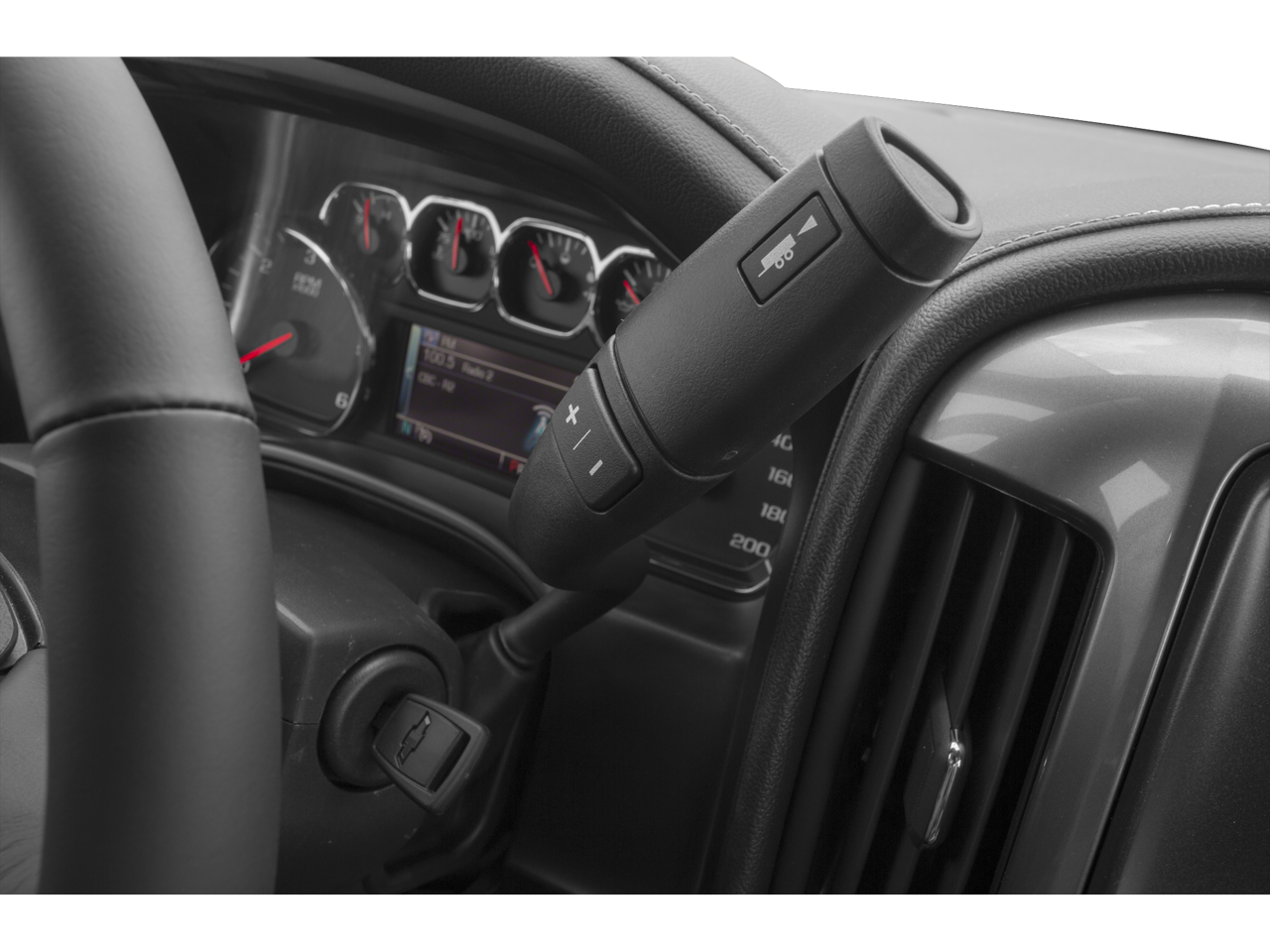

TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

WT CONVENIENCE PACKAGE

(Includes (AKO) tinted windows (KI4) 110V outlet (AQQ) Remote Keyless Entry (UVC) Rear Vision Camera and (DL8) power mirrors.)

• AKO-F
• DL8-R
• G80-R
• IO3
• LV3
• MYC
• PCM-R

• Mileage
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 24
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 14.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3850
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 6900
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 550
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Maximum Trailering Capacity (lbs): 9400
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3650
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3650
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: RBZ
• Rear Tire Order Code: RBZ
• Spare Tire Order Code: ZBZ
• Front Tire Size: P255/70R17
• Rear Tire Size: P255/70R17
• Spare Tire Size: P255/70R17
• Front Tire Capacity (lbs): 3650
• Rear Tire Capacity (lbs): 3950
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: 16.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 48.6
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.0
• Length, Overall w/o rear bumper (in): 239.57
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 73.73
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.90
• Cab to Axle (in): 41.47
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.50
• Ground Clearance, Rear (in): 8.50
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.87
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.6
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 65.73
• Second Hip Room (in): 60.27
• Summary
• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.8
